The data frames

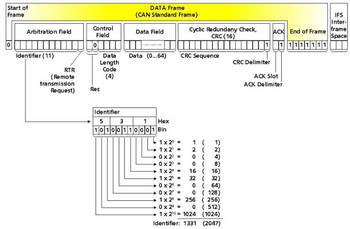

A data frame can be up to 117 or 136 bits long regardless of the format used (standard or extended). The complete frame is made up of seven fields for both formats. The following diagram represents the design of a message frame only using the example of a data frame in standard format .
The data frame (in standard format) has the following configuration:
